Introduction

The process of testing a conventional piece of software is usually implemented by first elaborating a test plan, which leads to the design of various test suites[1], then running these test suites on a regular basis to ensure the correctness and stability of the system through its development and maintenance.  A test case is generally composed of pair of data sets:  the input data and the corresponding (expected) output data.  Executing a test case consists in submitting the input data to the system and comparing the actual output to the expected output:  if they match, the test case execution is considered successful.

The initial investment required in creating the test cases, especially the part about manually devising the expected output values, is usually non-negligible.  However, this investment gets quickly amortized since the same test suite executions are repeated over time for regression testing purpose.  Also, and more importantly, the expected values of a test case do not change unless the system requirements themselves are changing, which should rarely occur in a conventional system.

This assumption does not hold true for business rule based systems.  Indeed, the essence of business rules engines and the reason why they have been brought into the enterprise software picture is to provide a quick turnaround for frequent business requirement changes and adjustments.  Still, the ability to quickly implement and deploy incremental changes that comes with the business rules paradigm does not exonerate us from applying a stringent unit-testing and quality assurance process.

With business rules based systems, the problem that we face is that we need to preserve the rapid implementation and deployment of changes while still running the set of test cases necessary to ensure the system correctness.  If we decide to stick with the standard approach of comparing expected versus actual results, we need to review and update the expected values of the test cases whenever the requirements are updated and a new rule set is deployed.  As we mentioned, devising the expected results of test cases is a step that requires a significant time investment from a group of precious business Subject Matter Experts (SME).

These experts are often a scarce resource, which can hardly, if at all, be supplemented by external contractors.  It is thus essential for the organization IT group to find a way to partly automate the testing of incremental changes in a rule-based application.  We present here a testing approach that does not replace, but complements, the use of expected results.  It is based on the comparison of the output from the currently tested and deployed rule set (referred to as the champion rule set) with the output from the updated rule set currently being tested (referred to as the challenger rule set).

The concept of pass/fail is based on an equivalence function that has semantics specific to a test suite and that determines, for a given test case, if the difference between the output from the champion and the challenger rule sets is acceptable or not.

This incremental difference (or delta) testing approach is more declarative and local than the traditional one; the question we have to ask ourselves while designing the test cases is now "what changes from the previous version should we expect in the output?" rather than the traditional "what output should we expect?"  The main benefit is that testing does not depend on the SME resources to define and update the test cases.  Also, the approach allows the quick definition and execution of large sets of tests cases, making quality assurance for rule sets more realistic and thorough.

In the following sections, we present in more detail the concept, the benefits, and the implementation of the delta-testing approach for business rules.

Application in Mortgage Lending

We selected mortgage underwriting (and prequalification) as a supporting application domain example for our presentation.  Mortgage underwriting applications are especially relevant to delta testing because changes to the business rules are frequent and incremental.  This is particularly true in the sub-prime lending area, where changes to underwriting guidelines often come out weekly, to adjust to ever new and creative lending options and also heavy competition among lenders.

Some examples of data involved in mortgage underwriting are the type of property (e.g., Condominium, Single Family Residence, Manufactured Homes), the FICO score of the applicant, etc.  Extensive information on the domain (data dictionary, XML DTDs) can be found at http://www.mismo.org, the site for the Mortgage Industry Standards Maintenance Organization, which maintains electronic commerce standards for the mortgage industry.

Delta Testing

The data flow of a conventional testing framework is presented on Figure 1.  The framework involves a single rule engine that runs the tested rule set and two sets of user data input:  the test cases input data and the expected output data.

Click here to view larger image

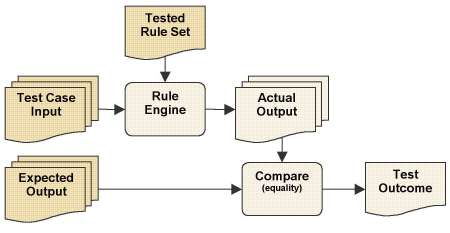

Figure 1.  Conventional Testing Framework

By contrast, the delta testing framework involves two rule engines, one for the champion rule set and the other for the challenger rule set, and a single set of user data input, which is the test cases data input.

Click here to view larger image

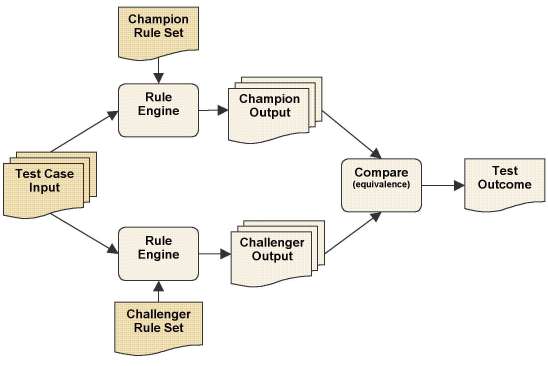

Figure 2.  Delta Testing Framework

While the response comparison process in a conventional testing framework is always based on strict equality, delta testing needs to use a more flexible notion of equivalence.  Using equality leads to qualitative delta testing.  Using a custom equivalence function leads to quantitative delta testing.  These two approaches and their specific use are detailed in the following sections.

Qualitative Delta Testing

The simplest way to exploit delta testing is to test for strict equality between all the output values from the champion and challenger rule sets.  The qualitative indication is whether or not the changes implemented by the challenger rule set are affecting the outcome of the test case execution.  As a result, we get a partitioning of the test cases into (1) the set that yields an identical output and (2) the set that yields a different output.

Qualitative testing can be used to assess the following:

  • Correctness of a rules refactoring exercise:  as in the regular software lifecycle, the rule set lifecycle includes refactoring, where the rules are refined, the rule packages restructured, and the rule flow redesigned in order to accommodate the application needs for extensions or performance.  After the refactoring is complete, we should test that all possible input produces the same output through the champion and challenger rule sets.  The refactoring exercise is successful if none of the test cases output differ between the champion (original) and the challenger (refactored) rule sets.

  • Stability of the system and extent of change:  after a business requirement change has been implemented in a rule set, it is easy to come up with a set of test cases that should show some impact from the change and another set that should not show any impact from the change.  By running the latter set through delta testing, we can decide on the stability of the system through the change.  By running the former, we can verify that the region of the solution space that we intended to update was properly targeted.

Quantitative Delta Testing

By using quantitative delta testing, i.e., by actually examining the difference in value between the output from the champion and the challenger rule sets, we can achieve more specific testing and increase the usefulness and coverage of our testing.  Here, instead of using a strict equality criterion, we are testing that the difference between the value from the champion output and the value from the challenger output is equal to a certain expectation such as a constant offset value.

For example, the base rates for mortgage products are often required to change.  To test that the change is correctly implemented, we simply need an equivalence function that compares the difference between the base rate of the champion and the challenger and compares it to the base rate difference that should be introduced by the rules change.

While requirement changes are frequent in business rules, they are often repetitive in nature and can be categorized in a set of recurrent types of changes, such as change in base rate or change in the set of underwriting conditions, etc.

So, after a few cycles of requirement changes, we end up with a set equivalence functions implemented as a "comparison tool-box" that we can reuse to test most of the future requirement changes.

Intensive Test Cases Definition

We have shown in the previous sections that by using delta testing, we can perform some quality assurance without having to deal with expected values.  By using intensive test case definitions from domains, we now show how we can generate large amount of test cases from concise descriptions.

In most cases, the variable values in a business application either belong to a finite discrete domain (e.g., PropertyType in [SingleFamily, Condominium, Townhouse, …]) or can be discretized in buckets from which a representative value can be selected (e.g., CreditScore in [499, 500, 550, …] or LTV in [60.0, 65.0, 70.0, …]).

This aspect is key in setting up intensive (versus extensive) descriptions of large sets of test case input data.  An extensive description of the test cases input values consists of listing all the values for all the variables involved in the input data set.  For example, test cases can be defined by the following tuples:

TC1 = {{CreditScore, 700}, {PropertyType, Condominium}, …}

TC2 = {{CreditScore, 700}, {PropertyType, SingleFamily}, …}

TC3 = {{CreditScore, 750}, {PropertyType, Condominium}, …}

TC4 = {{CreditScore, 750}, {PropertyType, SingleFamily}, …}

An intensive description consists of listing all the desired values for each variable (sub-domains) and traversing the cross-product of these sub-domains to generate the extensive version of the test cases.  For example, the above four test cases can be represented intensively by the following description.

TC1...4 =    {{CreditScore,{700, 750}},

     {PropertyType,{Condominium, SingleFamily}}, …}

This definition is concise and the number of test cases it represents grows exponentially by adding values in the sub-domains.  For example, adding two values to the PropertyType sub-domain and three values to the CreditScore leads to twenty different test cases instead of four.

Let us suppose that a guideline change for the Condominium property type has been implemented and we need to test the updated rule set.  We know that for all property types other than Condominium, no change in the output should occur and that, for the Condominium type, two specific conditions should be added to the output.  We can thus devise two sets of test cases:

  • The first set has a sub-domain reduced to [Condominium] for PropertyType, and we'll make sure that, for test cases in this set, there are two more conditions in the challenger output than in the champion output.

  • The second set has a sub-domain for PropertyType that includes all the possible property types except Condominium, and we'll make sure that, for test cases in this set, the champion and challenger outputs are identical.

Using intensive test case definition is completing the delta-testing approach by allowing the creation of large number of test case input data without having to spell out each individual test case.  The intensive definition prescribes which possible values can be used in the test case data.  The actual construction of the test cases is left to an automated enumeration mechanism.

Extensive Test Case Definition

One of the best sources of test cases for systems running in production is obviously the application database that logs the system client transactions.  The most significant business data combinations can be obtained in large numbers from this database.

Delta testing makes it possible to profit from this large set of test cases, mainly through quantitative delta testing.  Tens of thousands of real life test cases can be extracted from the database and executed each time a new rule set is to be released, to verify the extent of the rule change as described in the Qualitative Delta Testing section.

Sample Test Harness Implementation

We propose here some highlights of a sample practical implementation of the delta testing harness.  It allows the selection of a champion and a challenger rule set file, and the execution of a batch of test suites defined in a batch file.

For each test suite, two Excel (CSV) files are generated:  one, which records the test cases input data that produce an equivalent output through the comparison function, and the other, which records the test case input data that produce a non-equivalent output.

Batch File Definition

The batch file is composed of a set of test suite definitions.  Each line of the batch file can either be blank, or a comment line (line where the first non-blank character is #), or a test suite definition of one of the two forms below:

INT <output> <domains> <order> <count> [<comparator> [<arg1> … <argn>]]

EXT <output> <testcases> <count> [<comparator> [<arg1> … <argn>]]

The INT prefix is for test suites using intensive test case definition, while EXT is for test suites using extensive test case definition.

The test suite parameters definitions are:

  • <output>:  the prefix used to generate the name of the Excel files.  Two files named <output>_EQUIVALENT.csv and <output>_DIFFERENT.csv are generated as the result of running the test suite.

  • <domains>:  the name of the file that contains the definition of the sub-domains of values for each necessary variable.  Each line of a domain file should either be blank, or a comment line, or a sub-domain definition of the form:

            <variable> = <value1> … <valuen>

  • <testcases>:  the name of the CSV file that contains one test case definition (set of attribute values) per row.

  • <order>:  the order in which the sub-domains should be traversed to generate the test cases.  The value is one of DFS or RANDOM.  The DFS order will traverse the set of domains in depth-first order, thus guarantying that all tuples are visited once and only once.  RANDOM order will repeatedly choose a value at random in each sub-domain.

  • <count>:  the number of test cases to submit for evaluation out of the ones that can be generated from the sub-domains.  In the case of DFS order, if the size of the cross-product of the sub-domains is smaller than the requested count, the execution stops after all test cases from the cross-product have been submitted for evaluation.

  • <comparator> is an optional parameter that is the name of the comparator class to use to evaluate the equivalence of outputs.  The class should implement a common interface defining the equivalence function (see class ResponseComparator in the section below).

  • <argi> is an optional additional argument to pass to the constructor of the comparator class.  If no comparator parameter is specified, a default "strict equality" comparator class is used.

Batch File Example

Below is an example of the content of a batch file with four test suites, testing two main business requirement changes:

# Test suite for release 2.5.1

# Testing requirement "decrease base rate by 15bps"
#
INT base rel251.domains RANDOM 1000 BaseRateComparator -0.15

# Testing requirement "decrease minimum rate for FIXED products by 25bps"
#
INT min15x15 rel251.domains RANDOM 500 MinimumRateComparator FIXED15x15 -0.25
INT min30x30 rel251.domains RANDOM 500 MinimumRateComparator FIXED30x30 -0.25

# Running regression tests
#
EXT regression regression.csv 5000

This example shows the use of two comparator classes:  BaseRateComparator and MinimumRateComparator.  These comparators (equivalence functions) are dedicated to test respectively a change (increase or decrease) of base rates and a change (increase or decrease) of minimum rates for a given mortgage product.  Once implemented, these comparators can be reused for all such routine changes.

While the first three test suites are using an intensive test case definition through a domain file, the last test suite uses the regression.csv file as the set of extensive test case definition.  This test suite does not specify any custom comparator and will thus use the default strict equality.

Domains File Example

Below is an excerpt of a domains file:

State = CALIFORNIA MARYLAND VIRGINIA DELAWARE HAWAII MICHIGAN FLORIDA LOUISIANA
PropertyValue = 60000 100000 110000 120000 150000 160000 200000 300000 400000
Ltv = 65 70 75 80 85 90 95 100
CreditScore = 500 580 600 639 640 700 720 750 760
DocumentationType = FullDocumentation NoDocumentation Reduced
PurchaseType = Purchase Refinance Other
PropertyType = SingleFamily Condominium Townhouse Modular PUD
PropertyUsageType = Investor Primary Residence SecondHome

Note that when using the RANDOM traversal order for a domain, the same value can be repeated multiple times for a given variable, so that the probability distribution is different for different values.  For example, if we want to reflect that most of the time, the PropertyType value is SFR, we can specify the following sub-domain:

PropertyType = SingleFamily Condominium Modular PUD PUD PUD

This example gives PUD a 50% chance of being selected in the test cases generation process versus a 16.7% chance for the other property types..

Test Harness Design

The class structure of the test harness that supports delta testing is illustrated in Figure 3.  TestHarness is the central class from which the rule sets are loaded and the batch test file is run.  It uses two instances of RuleHarness, one for the champion, one for the challenger, which are representing the two engine instances.

The TestCaseIterator class is an abstract class with two concrete subclasses:  IntensiveTestCaseIterator and ExtensiveTestCaseIteratorIntensiveTestCaseIterator is responsible for implementing an iterator that, given a domains file, iterates over the tuples of values that can be produced from the sub-domains.  ExtensiveTestCaseIterator is responsible for implementing an iterator through the tuples of values defined by each row of a given CSV file.  A tuple is represented by an instance of the RequestHolder class, which provides a mapping function to the actual request object from the application BOM.

The ResponseComparator class is an abstract class that declares the equivalence function areEquivalent between two instances of the response object from the application BOM.  The ExactComparator subclass performs the strict equality comparison between two response objects.  Other specific comparator classes are implemented for quantitative testing.

Note that our sample implementation of the test harness is making a heavy use of Java reflection to traverse and compare the content of the responses from the rule engines.

Click here to view larger image

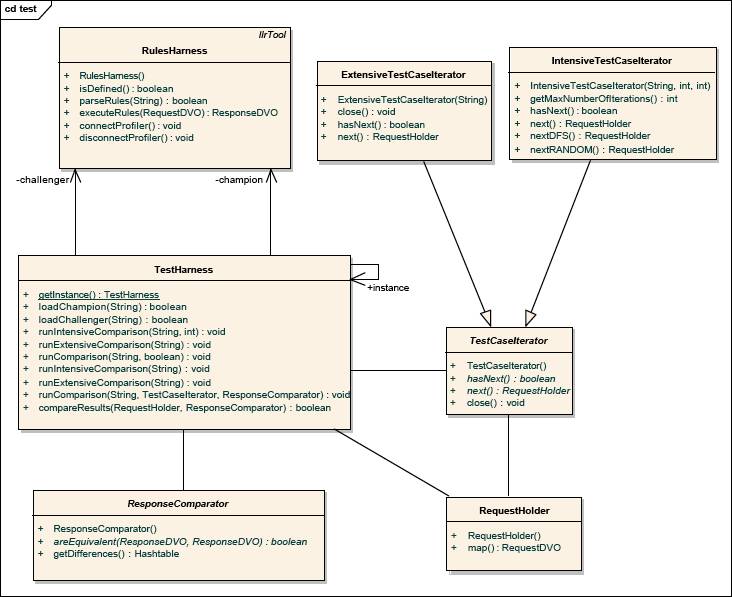

Figure 3.  Test Harness Class Diagram

Conclusion

While business rules based applications usually receive proper testing on their initial release, we often fail to plan for (and even sometime to realize) that:

  • The initial business requirements will change because change is the essence of business rules based systems, and test cases will have to be revised accordingly.

  • The rapid pace of change is essential to the organization, and while it can usually be sustained on the implementation side, it should not be slowed-down by the QA process.

Add to this the scarcity of SMEs able to maintain the test case base, and we obviously need a testing paradigm that is not solely based on the comparison of actual against expected results.

We proposed a framework that is based instead on the comparison of champion against challenger results.  Among the expected benefits are:

  • To free the testing team from the burden of maintaining expected results, thus accelerating the testing process and reducing the bottleneck for rapid change deployment.

  • To make test writing more technical, thus more manageable by a business-agnostic QA department.

  • To support the production and execution of a high volume of test cases through intensive test case definitions, thus improving the coverage of the QA process.

Notes

[1]  We use the term 'test suite' for a collection of test cases dedicated to the test of a specific system feature.  return to article

# # #
