Temporal Modeling (Part 6)

Terry   Halpin
Terry Halpin Professor of Computer Science, INTI International University (Malaysia) Read Author Bio || Read All Articles by Terry Halpin

This is the sixth in a series of articles on the impact of time on the conceptual modeling of business domains.  The first article[8] discussed the temporal data types instant (point in time), interval (duration of time), and period (anchored duration of time), classified temporal object types into once-only (e.g., Date) and repeatable (e.g., WeekDay) object types, and discussed four kinds of fact type:  definitional (truth of instances is a matter of definition), once-only (instances correspond to a single event), repeatable (instances may correspond to multiple events), and time-deictic (the meaning of instances depends on the time of utterance/inscription).  It then showed how to model temporal details about point events or period events underlying instances of once-only fact types that are unchangeable.  The second article[9] examined the modeling of temporal information about events underlying changeable fact types (their fact populations may change over time, by replacing, adding, or deleting facts) that are functional (n:1 or 1:1 associations).  The third article[10] discussed how to maintain history of changeable fact types that are nonfunctional (e.g., m:n binaries, or higher arity fact types).  The fourth article[11] provided another way in UML 2 to maintain history of nonfunctional, changeable fact types, and then discussed rigid subtypes and role subtypes, and related dynamic constraints.  The fifth article[12] introduced the decreasing disjunctions pattern to maintain history of migration between subtypes when the state transition graph is linear.

This sixth article discusses an alternative way to maintain history of objects as they migrate from one role subtype to another, for linear state transition cases:  the once-only role-playing pattern.  Three graphical notations are used for examples:  second generation Object-Role Modeling (ORM 2)[5] [6] as supported by the open source (Neumont ORM Architect) NORMA tool[3] [14]; the Unified Modeling Language (UML)[15]; and the Barker notation[1] for Entity-Relationship Modeling (ER)[2].

Modeling Linear Subtype Migration with the Once-only Role-playing Pattern

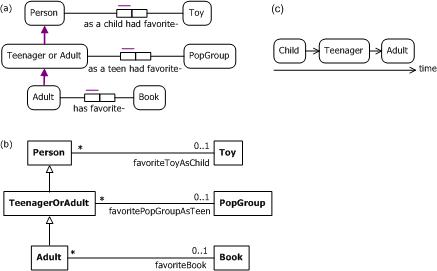

The previous article considered the need to retain subtype-specific details of objects as they move from one role subtype to another, for linear transition cases where objects never return to play a role once they leave it.  As an example, we required recording of details about one's favorite toy as a child, one's favorite pop group as a teenager, and one's favorite book as an adult.  The solution provided used the decreasing disjunctions pattern, where successive subtypes remove an alternative (disjunct), as shown in Figure 1 for (a) ORM and (b) UML.

Figure 1.  Applying the decreasing disjunctions pattern in (a) ORM and (b) UML for linear state transitions (c).

Here Person is equivalent to the disjunction Child-or-Teenager-or-Adult.  Subtyping to Teenager-or-Adult removes the Child role, and subtyping further to Adult removes the Teenager role.  With this model, we may record details about a person for all three phases/roles (Child, Teenager, Adult) of their life, even though at any point in time they belong to only one of these phases/roles.  Recall that, unlike some other approaches[4], we use "role type" liberally to include phase types.  For the same model in Barker ER notation, see [12].

As the state chart in Figure 1(c) indicates, this is a case of linear state transitions, where a person can never return to one of these phases/roles once they leave it.  In this sense, we regard Child, Teenager, and Adult as once-only roles (roles that are never repeated, i.e., once you've played and left that role, you never play it again).

In cases like this, as an alternative to the decreasing disjunctions pattern, we may model the situation using what I call the once-only role playing pattern, where the playing of a once-only role is treated as an object in its own right.  The life role playing type may then be subtyped into the three phases, and the relevant details for each phase attached to each.

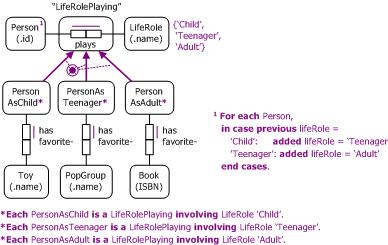

An ORM solution using this approach is shown in Figure 2.  For completeness, reference schemes have been added as well as subtype definitions.

Figure 2.  Applying the once-only role playing pattern in ORM.

Here the subtypes (PersonAsChild, etc.) are subtypes of LifeRolePlaying (the objectification of Person plays LifeRole), not subtypes of Person.  Like the decreasing disjunctions pattern, the once-only role playing pattern assumes that each subtype is a once-only role, but unlike the previous pattern it does not specify the linear order of the roles.  In ORM 2's Fact Oriented Modeling Language (FORML), this transition order may be specified as a dynamic textual constraint on the fact type Person plays LifeRole as follows, using 'previous' in the derivable sense of 'most recent'.  As this is a case of adding rather than replacing facts, 'added' is used instead of 'new'.  On the ORM diagram, this dynamic constraint appears as a footnote on the constraint context (Person).

For each Person,
in case previous lifeRole =
    'Child': added lifeRole = 'Teenager'
    'Teenager': added lifeRole = 'Adult'
end cases.

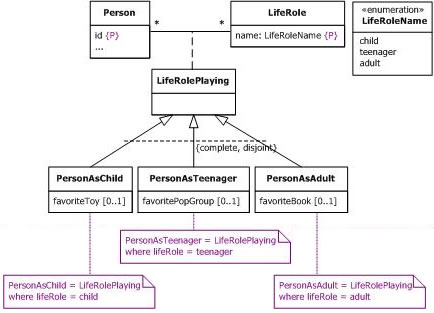

Figure 3 shows one way of modeling the same approach in UML.  Here an association class is used to capture the objectification LifeRolePlaying.  The specific details recorded for the subclasses are modeled here as attributes.  Recall that {P} is our nonstandard notation for preferred identifier.  The subclass definitions are specified informally in notes.  If we also wished to record something about favorite toys, pop groups, or books, then these details would instead be modeled as associations to Toy, PopGroup, and Book classes.  The dynamic constraint on state transitions may be shown on a separate diagram, such as a state machine diagram which looks similar to Figure 1(c), without the time axis.

Figure 3.  Applying the once-only role-playing pattern in UML.

In ORM, any objectified association may be remodeled as a coreferenced type, allowing a variation of the once-only role playing pattern.  So the objectified association LifeRolePlaying may instead be modeled as a coreferenced type, participating in the fact types LifeRolePlaying is by Person and LifeRolePlaying is of LifeRole, as shown in Figure 4.  Here the circled double-bar indicates an external uniqueness constraint (each combination of Person and LifeRole instances refers to at most one LifeRole Playing) that is used as the preferred identifier for LifeRolePlaying.  For simplicity, the subtype definitions and dynamic rule are omitted (they are the same as given previously).

Figure 4.  Applying the coreferenced version of the once-only role-playing pattern in ORM.

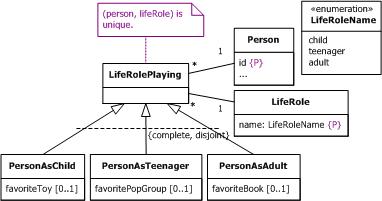

Figure 5 shows an equivalent model in UML.  Since UML lacks any graphic notation for external uniqueness, this constraint is captured informally in a note.

Figure 5.  Applying the coreferenced version of the once-only role-playing pattern in UML.

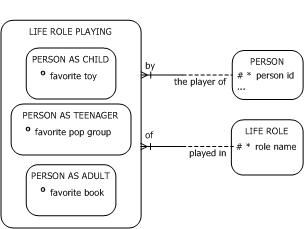

One advantage of the coreferenced version of the pattern is that it enables the pattern to be used in modeling approaches such as industrial ER that do not support objectified associations.  For example, Figure 6 shows the basic solution in the Barker ER notation.  The strokes through the association lines indicate that instances of the entity type LifeRolePlaying are identified by (person, lifeRole) pairs instantiating the far roles of these associations.  As the Barker ER notation does not support subtype definitions or enumerations, much less dynamic constraints, these aspects need to be noted separately.

Figure 6.  Applying the coreferenced version of the once-only role-playing pattern in Barker ER.

Conclusion

This article illustrated the use of the once-only role-playing pattern to model history of objects as they move from one role type to another.  Both this pattern, and the decreasing disjunctions pattern considered in the previous article, are restricted to cases where the roles are once-only (once you've played and left that role, you never play it again).  These two patterns cannot be used to maintain history in cases where a role may be repeatedly played more than once during an object's lifetime.  For example, a person may play the role of being married, then the role of being divorced or widowed, and then play the role of being married again.  The next article discusses a third pattern, the repeatable role playing pattern, to handle such cases.

References

[1]  R. Barker.  CASE*Method:  Tasks and Deliverables.  Addison-Wesley:  Wokingham, England (1990).  return to article

[2]  P. P. Chen.  "The Entity-Relationship Model — Towards a Unified View of Data," ACM Transactions on Database Systems, Vol. 1, No. 1 (1976), pp. 9-36.  return to article

[3]  M. Curland & T. Halpin.  "Model Driven Development with NORMA," Proc. 40th Int. Conf. on System Sciences (HICSS-40).  IEEE Computer Society (January 2007), 10 pages, CD-ROM.  return to article

[4]  G. Guizzardi.  Ontological Foundations for Structural Conceptual Models, CTIT PhD Thesis Series, No. 05-74, Enschede, The Netherlands (2005).  return to article

[5]  T.A. Halpin & T. Morgan.  Information Modeling and Relational Databases, 2nd edition.  Morgan Kaufmann:  San Francisco (2008).  return to article

[6]  T.A. Halpin.  "ORM 2," On the Move to Meaningful Internet Systems 2005:  OTM 2005 Workshops.  eds. R. Meersman, Z. Tari, P. Herrero, et al.  Springer LNCS 3762:  Cyprus (2005), pp. 676-687.  return to article

[7]  T.A. Halpin, "Verbalizing Business Rules (Part 14)," Business Rules Journal, Vol. 7, No. 4 (Apr. 2006), URL:  http://www.BRCommunity.com/a2006/b283.html

[8]  T.A. Halpin, "Temporal Modeling (Part 1)," Business Rules Journal, Vol. 8, No. 2 (Feb. 2007), URL:  http://www.BRCommunity.com/a2007/b332.html  return to article

[9]  T.A. Halpin, "Temporal Modeling (Part 2)," Business Rules Journal, Vol. 8, No. 6 (June 2007), URL:  http://www.BRCommunity.com/a2007/b351.html  return to article

[10]  T.A. Halpin, "Temporal Modeling (Part 3)," Business Rules Journal, Vol. 8, No. 11 (Nov. 2007), URL:  http://www.BRCommunity.com/a2007/b374.html  return to article

[11]  T.A. Halpin, "Temporal Modeling (Part 4)," Business Rules Journal, Vol. 9, No. 4 (Apr. 2008), URL:  http://www.BRCommunity.com/a2008/b411.html  return to article

[12]  T.A. Halpin, "Temporal Modeling (Part 5)," Business Rules Journal, Vol. 9, No. 10 (Oct. 2008), URL:  http://www.BRCommunity.com/a2008/b444.html  return to article

[13]  T. Halpin & H. Proper.  "Subtyping and polymorphism in object-role modelling," Data & Knowledge Engineering, vol. 15, no. 3 (1995), pp. 251–281.

[14]  NORMA website:  http://www.ormfoundation.org and http://sourceforge.net/projects/orm  return to article

[15]  Object Management Group.  UML 2.0 Infrastructure.  Object Management Group (2003).  URL:  http://www.omg.org/uml  return to article

# # #

Standard citation for this article:


citations icon
Terry Halpin , "Temporal Modeling (Part 6)" Business Rules Journal Vol. 9, No. 12, (Dec. 2008)
URL: http://www.brcommunity.com/a2008/b454.html
